**These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer.**

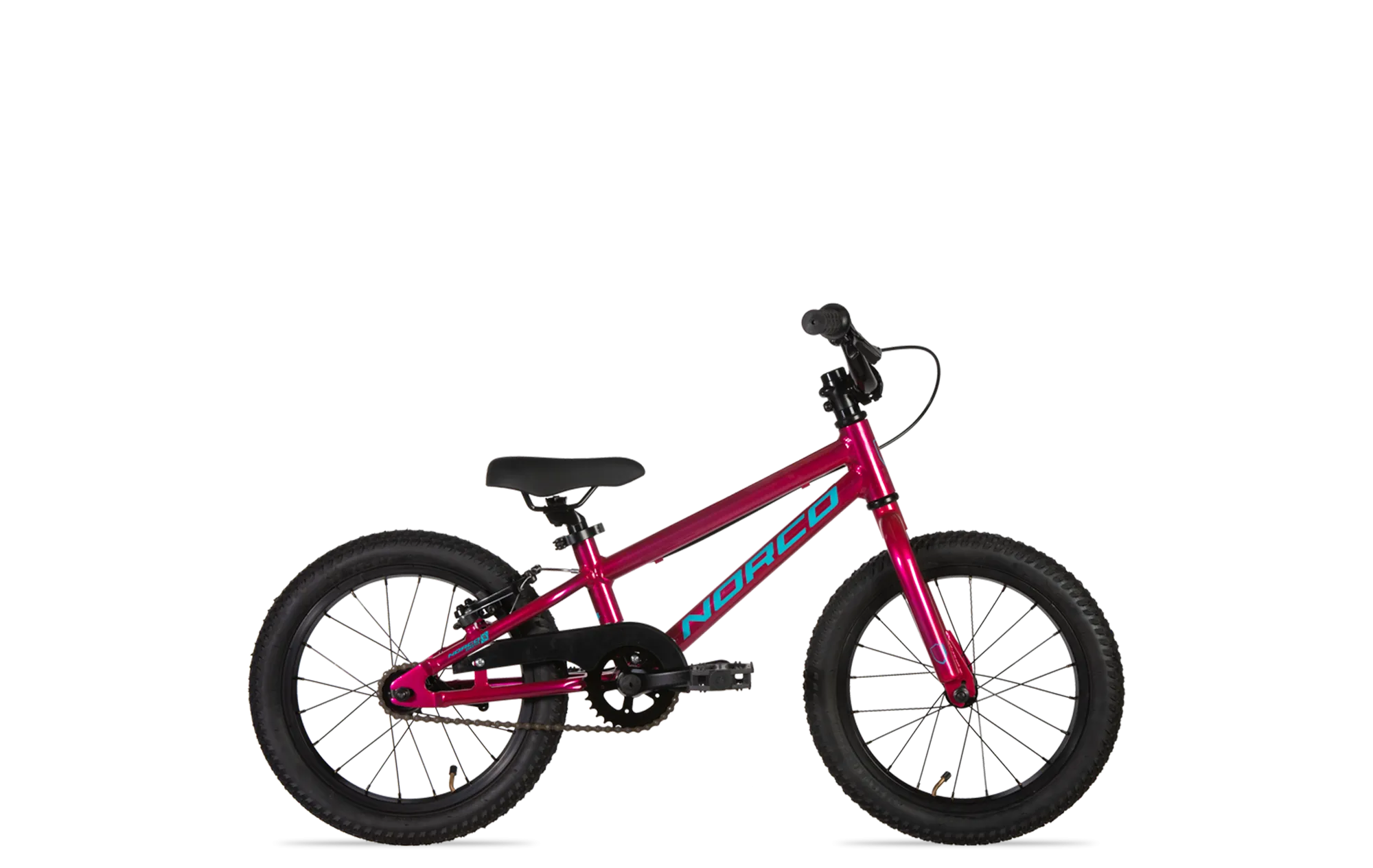

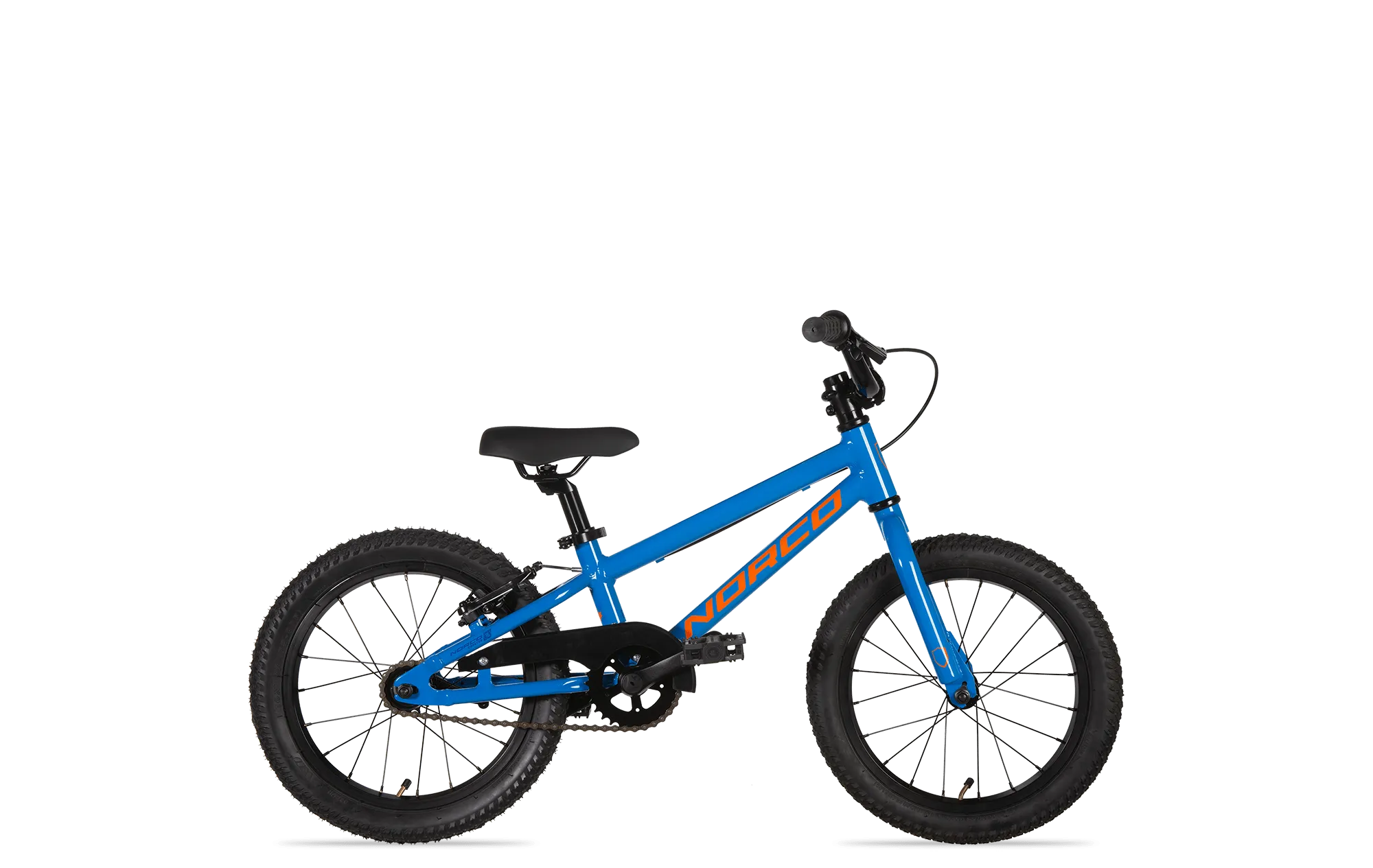

Norco's 16" Coaster mountain bikes are perfect for getting your 4 to 5-year-old youngster riding trails and having fun. These bikes feature Norco's rugged but lightweight aluminum frame, 16-inch wheels, and quality components across the board.
With a familiar coaster brake and rear hand brake, young riders can confidently get rolling and dependably stop. They'll love the eye-catching colours and comfortable seat as they experience two-wheeled fun and freedom.
TECHNICAL SPECIFICATIONS
FRAMESET
FRAME
Lightweight aluminum low stand over frame
FORK
Rigid hi-ten steel
HEADSET
Thread less 1-1/8” ball bearing type
DRIVETRAIN
CASSETTE
16T sprocket
CHAIN
KMC Z410A
CRANKSET
Aluminum 3pc crank, 30T
BOTTOM BRACKET
MTB style BB with sealed cartridge bearing
PEDALS
Super Jr. MTB Flats
COMPONENTS
GRIPS
Jr. MTB type, soft rubber
HANDLEBAR
Alloy 31.8mm riser bar
STEM
Alloy 35mm
SEAT POST
Alloy 27.2mm
SEAT POST CLAMP
Aluminum QR seat post clamp
SADDLE
Norco Super Jr. Saddle
REAR BRAKE
Alloy V-Brake with linear spring
BRAKE LEVERS
Jr. MTB alloy lever w/reach adjust
TRAINING WHEELS
Jr. training wheel with support brace included
WHEELS
FRONT HUB
Alloy hub w/ball bearing
REAR HUB
Steel coaster brake
RIMS
Aluminum 16” MTB
SPOKES/NIPPLES
Steel UPC black
TIRES
16” x 1.95” w/MTB tread
* Specifications are subject to change without notice
GEOMETRY
| Frame Size: | ONE SIZE |
| Reach: | 283 |
| Stack: | 329 |
| Head Tube Angle: | 69 |
| Seat Tube Length: | 200 |
| Effective Seat Tube Angle: | 70 |
| Rear Centre Length: | 286 |
| Bottom Bracket Rise/Drop: | 13 |
| Bottom Bracket Height: | 213.5 |
| Horizontal Top Tube: | 403 |
| Wheel Base: | 706 |
| Head Tube Length: | 100 |
| Stem Length: | 35 |
| Crank Length: | 114 |
| Front Centre Length: | 420 |
| Fork Length: | 257 |
